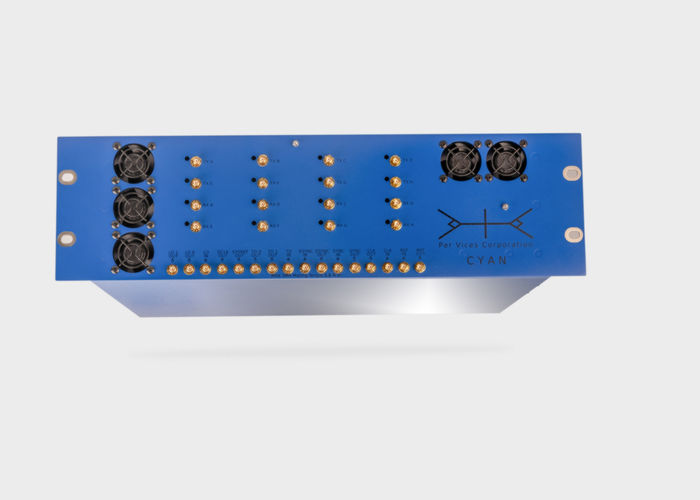

Cyan: Getting Started

Congratulations on your purchase of the Per Vices Cyan Transceiver! This manual is intended to provide you with useful information regarding the safe operation and use of your new transceiver.

Cyan is intended for advanced signal processing and data collection applications.

In building Cyan, we aimed to provide advanced capabilities at the lowest possible price. This product provides a sophisticated platform capable of advanced RF Signal processing and includes a robust and fully integrated RF chain.

Our hope is that you will find Cyan to be a useful and dependable companion in your engineering, development, and research efforts.

We welcome your feedback so please feel free to contact us.

Obligatory Warnings

This chapter contains important safety and regulatory information. Please pay attention to the following disclaimers, warnings, and cautions. This device is intended for engineering, research, or science laboratory use only - it is not for open office or residential use.

Note

This device has not been tested or approved by any agency or approvals body for Electrical Safety, Electromagnetic Compatibility, or Telecommunications at the time of distribution! Use this device at your own risk.

Disclaimer

This product is provided «As Is». Per Vices is under no obligation to provide updates, upgrades, support, or maintenance of any kind. Per Vices specifically disclaims any and all warranties and guarantees, express, implied, or otherwise, arising with respect to the use of this product including, but not limited, to the warranty of merchantability, the warranty of fitness for a particular purpose, and any warranty of non-infringement of the intellectual property rights of any third party. Per Vices neither assumes nor authorizes any person to assume for it any other liability.

Use of this device is at your own risk. Per Vices shall not be liable for any damages, direct or indirect, incurred or arising from the use of this product. In no event will Per Vices be liable for loss of profits, loss of use, loss of data, business interruption, nor for punitive, incidental, consequential, or special damages of any kind, however caused, and on any theory of liability, whether in contract, strict liability, or tort (including negligence or otherwise), arising in any way out of the use of this product, even if advised of the possibility of such damages.

Product Functionality

Every effort has been made to ensure that the device you receive is fully functional - each device is fully tested prior to shipping. Risk of damage or loss is transferred immediately upon delivery to you - we do not generally accept returns or refunds on successfully delivered packages. That being said, we do want to ensure your experience with Per Vices and Cyan is a pleasant one and we encourage you to contact us if you have any problems.

Specifications

Every effort has been made to test and measure the validity of this equipment. However, we cannot guarantee the accuracy of specifications, and they may change at any time.

Warnings

Warnings
RISK OF ELECTRIC SHOCK Do not attempt to modify or touch the internals of this device. Ensure host computer is properly grounded during operation. Disconnect AC power during installing or removal.
HOT SURFACE This device may become very hot during operation; avoid contact. Ensure adequate ventilation and that unobstructed fan inlets.
LABORATORY USE ONLY This device has not been approved by any agency or approvals body for Electrical Safety, Electromagnetic Compatibility, or Telecommunications at the time of distribution. Research use only!
Attention
OBSERVE ESD PRECAUTIONS This device contains electrostatically sensitive components: it may be damaged by static discharges. Observe ESD precautions & proper grounding when handling, installing, or removing device.
RF TRANSMITTER This device is capable of RF transmission on bands or frequencies subject to regulatory oversight. Operators are responsible to ensure use of this device meets local regulatory and legal standards, as they may apply to you and the band of interest. This device is intended for test and measurement use only.

Overview of Setup

Figure 1: Overall installation and configuration procedure.

Installation and configuration comprises of four parts:

  1. physically setting up the hardware
  2. configuring the host network interfaces,
  3. building and installing the Per Vices libUHD library on the host computer
  4. installing gnuradio

Prerequisite

Plugging in the devices

Hardware set up is reasonably straight forward. As shown in Figure 2, you must connect the ports in the correct order, with the following procedure.

  1. Ensure the Micro SD card is fully inserted inside the Micro SD card reader.
  2. Plug in the power cable at the rear of Cyan.
  3. Connect Ethernet cable from host computer to Management port on front of Cyan.
  4. Connect 40G qSFP+ cables from 40GBASE-R network card installed in host computer to qSFP+ ports on back of Cyan.
  5. Turn on the unit and wait for the LEDs on the front of Cyan to light up.
Figure 2: Physical installation of Cyan hardware.

Great! Now that your device is up and running, it’s time to make sure it can connect to the network.

LED Boot Sequence

When Cyan is powered on, the four status LEDs next to the SD card will begin to light up. A normal LED sequence is shown in Figure 4.

Figure 4: Cyan Status LEDs Normal Boot Sequence
Figure Stage Description
a Device is powered on
b FPGA is operating with a stable clock
c FPGA is up and Linux is booting
d HPS is up and Linux has booted
e Server is booting up
f Server has booted up

Great! Now that your device is up and running, it’s time to make sure it can connect to the network.
